0310A
  • 0310A

0310A

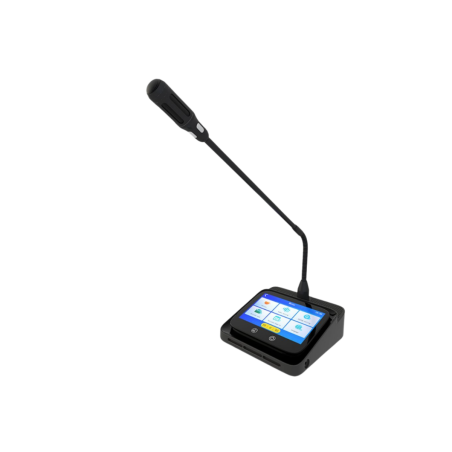

The TS-0310A is a wired delegate microphone unit designed for structured participation in digital conference systems. It ensures clear speech, hands-free communication, and user-friendly operation.

The TS-0310A allows delegates to speak when granted permission, using a push-to-talk button and LED indicators to show microphone status. The unidirectional condenser microphone ensures focused voice pickup, while optional speaker or headphone outputs allow for local audio monitoring. The unit connects to a central control processor and is compatible with digital systems that support voting, discussion control, and interpretation.

Features:

  • Delegate microphone unit with wired digital connection

  • High-sensitivity unidirectional condenser microphone

  • Push-to-talk and mute functions

  • LED indicators for microphone status

  • Optional speaker or 3.5 mm headphone output

  • Compatible with chairman unit and central processor

  • Compact, professional desktop design

Technical Specifications:

  • Microphone type: Unidirectional condenser

  • Frequency response: 100 Hz – 13 kHz

  • Sensitivity: –44 dB ± 2 dB

  • Controls: Talk, Mute

  • Indicators: LED for microphone status

  • Audio output: Speaker or 3.5 mm headphone jack (optional)

  • Connection: 8-pin DIN or proprietary connector

  • Power supply: From central processor

  • Dimensions: Approx. 190 × 130 × 50 mm

  • Weight: Approx. 0.9 kg
