Cámara PTZ
  • Cámara PTZ

Cámara PTZ

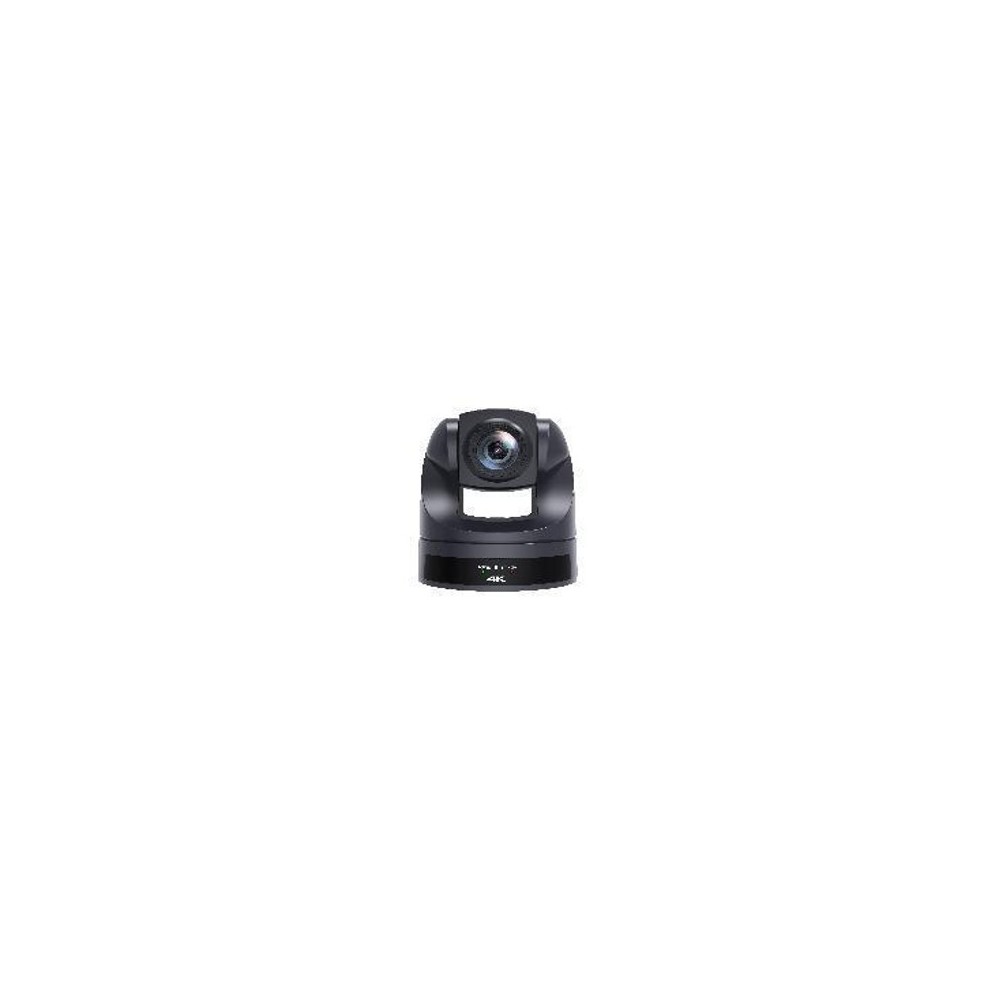

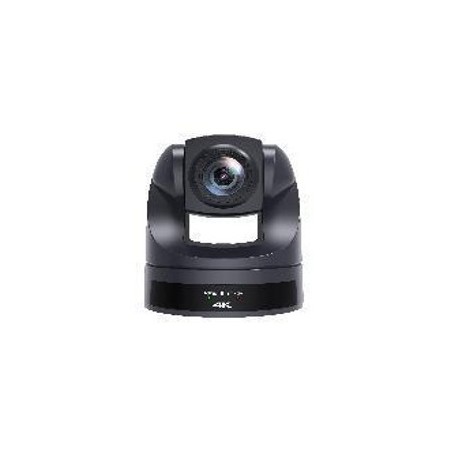

Equipped with a high-performance CMOS sensor, the TV-6124HK delivers smooth, detailed 1080p video. Its precise pan, tilt, and zoom (PTZ) mechanism ensures full coverage of the room with fluid, silent movement. The 24× optical zoom enables clear, close-up shots even at long distances.

The camera supports HDMI, 3G-SDI, USB 3.0, and IP streaming outputs simultaneously, making it ideal for hybrid AV setups. It includes support for PoE, remote control via RS232/RS485/IP, and video compression in both H.264 and H.265 formats for efficient bandwidth usage.

Features

  • Full HD 1080p resolution with 24× optical zoom

  • Smooth and quiet PTZ movement

  • Simultaneous HDMI, 3G-SDI, USB 3.0, and IP outputs

  • 3.5mm audio input and embedded audio via USB/IP

  • Supports PoE for simplified cabling

  • Multiple control interfaces: RS232, RS485, IP (VISCA, Pelco-D/P)

  • H.265 / H.264 compression for streaming efficiency

  • Ideal for conferences, churches, online classes, and streaming

Technical Specifications

  • Image Sensor: 1/2.8” 2.07MP CMOS

  • Resolution: Up to 1920×1080@60fps (Full HD)

  • Optical Zoom: 24×

  • Digital Zoom: 16×

  • Pan Range: ±170°

  • Tilt Range: -30° to +90°

  • Video Outputs: HDMI, 3G-SDI, USB 3.0, IP (RTSP/RTMP/SRT)

  • Compression Formats: H.265 / H.264

  • Audio Input: 3.5mm Line-in

  • Control Protocols: VISCA, Pelco-D, Pelco-P, ONVIF

  • Power Supply: DC 12V / PoE (IEEE802.3af)

  • Dimensions: Approx. 170 × 145 × 165 mm

  • Weight: Approx. 1.65 kg

  • Mounting Options: Desktop, wall, or ceiling mount

HK10UH
